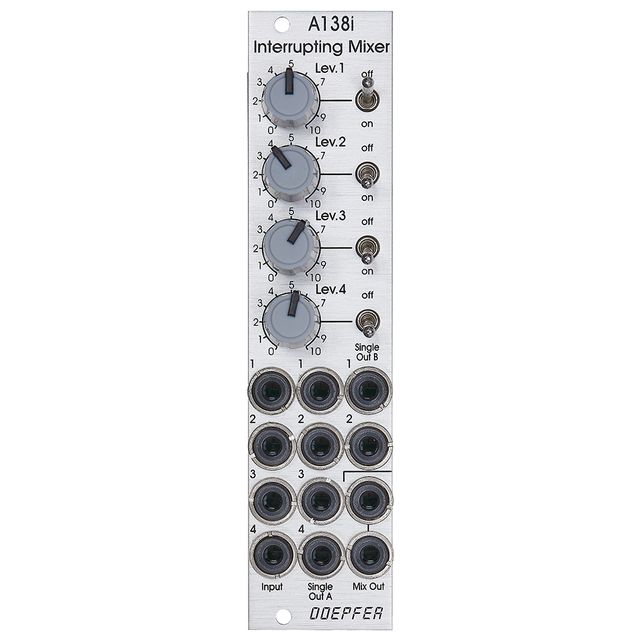

Doepfer A-138i Interrupting Mixer

The A-138i Interrupting Mixer from Doepfer is a 6TE narrow mixer module, which is equally suitable for audio signals and control voltages. Each input has its own attenuator and can be deactivated using the toggle switch. If a cable is plugged into the Single Out A socket, the corresponding channel is disconnected from the main output. Single Out B is reserved for inputs 1 and 2 only and acts as an attenuator for both channels when used. The output of the mixer is doubled and therefore acts as a mini- Multiple.

• Eurorack module
• four-channel Mixer
• Suitable for audio and control voltages.
• Attenuator for channels 1 & 2
• Mute switch per channel
• dual Output
• 6 TE Width / 35 mm Depth
• +12 V: 10 mA / -12V: 10 mA

• Производитель:Doepfer
• TE / HP:6
• Глубина (мм):35
• + 12 V (mA):10
• - 12 V (mA):10
• Количество входов:4
• Количество выходных разъемов:4
