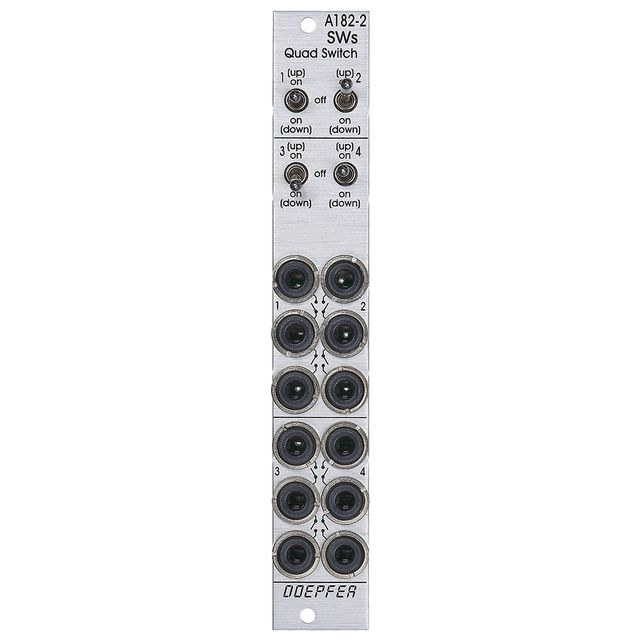

Doepfer A-182-2 Quad Switches

The A-182-2 Quad Switches from Doepfer is a 4HP narrow routing module that has four separate switching units. Each unit can switch either input A or B to an output or an input to outputs A or B. Due to the passive circuitry it is arbitrary whether audio, CV or gate signals are used per unit.

• Eurorack module

• Signal Router
• Four switching groups
• A/B on 1 or 1 on A/B routing
• 4 TE width / 20 mm depth
• Passive, no power consumption


• Производитель:Doepfer
• TE / HP:4
• Глубина (мм):20
• + 12 V (mA):0
• - 12 V (mA):0
