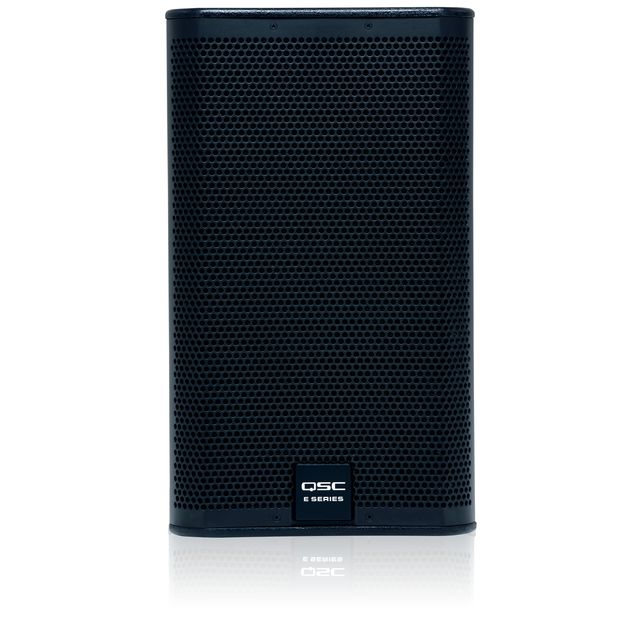

QSC E110 Passive Loudspeaker

The QSC E Series is a new passive speaker line that surpasses all expectations with its rugged construction, trustworthiness and sound quality. Designed for entertainment sound applications in live performances, DJ and dance music, karaoke and event production, the E Series speakers deliver excellent results. Based on the QSC's proven System DSP methodology, the performance of the E series speakers in combination with QSC GXD or PLD amplifiers or even with a QSC TouchMix digital mixer is significantly improved (the latter with the use of on-board DSP and factory-adjusted pre-sets). These configurations support a variety of applications including live sound (with and without subwoofer), stage monitoring, dance music and karaoke.

QSC E110
The QSC E110 is a 2-way full-range passive speaker. This multifunctional speaker is ideal for PA, installation and monitor applications, making it ideal for musicians, DJs and PA rentals. In its multi-purpose housing is a 10” woofer with cast basket and 2.5” voice coil, and can be utilised as a stage monitor as well as front facing PA. QSC's Directivity Matched Transition (DMT) design provides an 85° beam angle. When used as a stage monitor, the E110 is placed at an angle of 55° so that it directly targets the artist on a small stage. The QSC E110 offers a continuous power of 300W and a peak power of 1200W.

The main features of the QSC E110 include:

• 300W 2-Way 10” Passive Loudspeaker
• 1200W Peak Power
• Monitor Slope: 55°
• Impedance: 8 Ohms
• Speakers: 10" Woofer & 1.75" Tweeter Voice Coil
• Frequency Range: 50Hz-20kHz (-10dB)
• Maximum Sound Pressure (1m): 126dB
• Inputs: 2x NL4, 1x Barrier Strip
• Ideal Companion for the QSC E118sw E Series Subwoofer
• Powder-Coated Steel Speaker Grille
• Sturdy Ergonomic Metal Handle
• Robust 11-Layer Multiplex Wood Housing
• Durable Impact-Resistant Textured Finish
• 9x M8 Mounting Points for Flying Suspension
• Non-Slip Feet
• Dimensions: (HxWxD): 560 x 330 x 330mm
• Weight: 20kg

• Производитель: QSC
• Тип: Монитор
• Обработка сигнала: Пассивный
• Размер динамика (в дюймах): 10
• Размер драйвера ВЧ (в дюймах): 1
• Сопротивление (Ом): 8
• Вес (кг): 20
• Материал корпуса: Дерево
• Многофункциональный корпус: Да
• Угол раскрытия луча: 85°
• Вход: Speakon
• Выходной разъем: Speakon
• Высота (мм): 560
• Ширина (мм): 330
• Глубина (мм): 330
