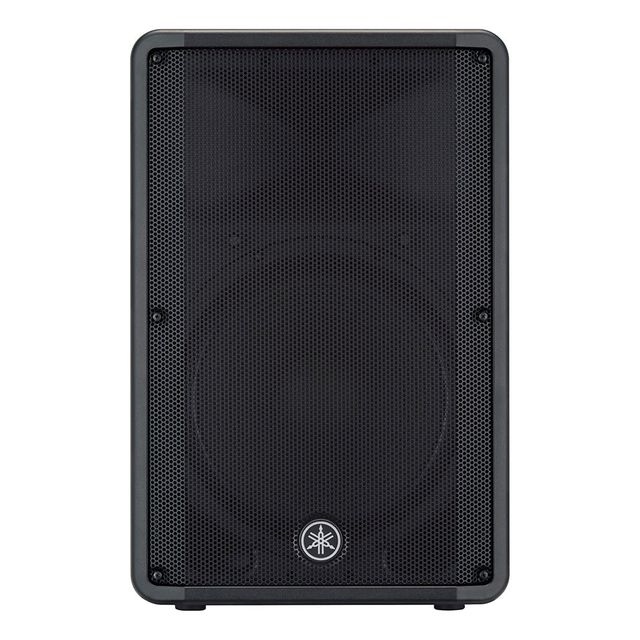

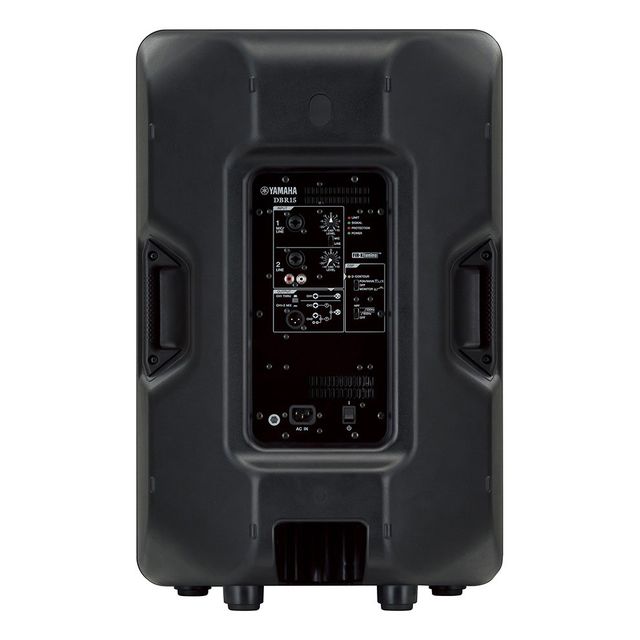

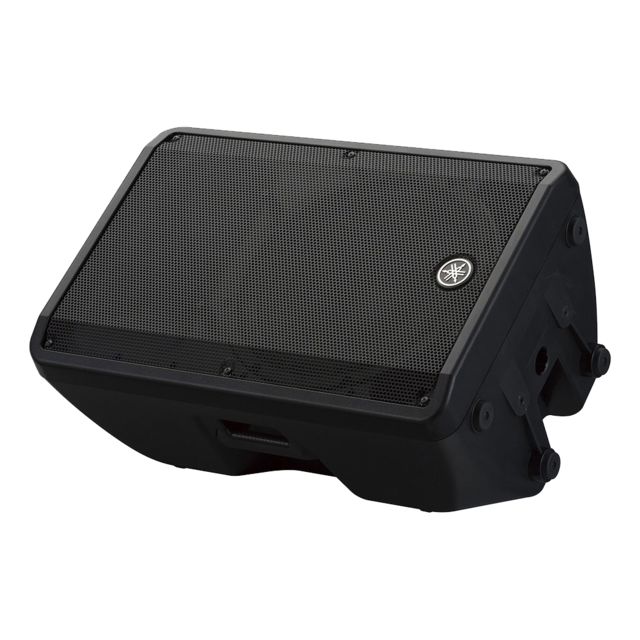

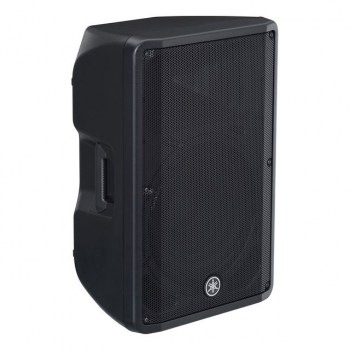

Yamaha DBR15

The portable, active DBR-15 loudspeakers from Yamaha impress by delivering up to a massive 132dB. Yamaha applied their proprietary FIR-X tuning to optimize the sound and protection algorithms, providing you with plenty of muscle from a compact, light weight and robust housing- ideal for FOH applications as well as for floor monitoring. Incredibly versatile and transportable, the DBR-15 delivers the best sound for any event, whether it is a live gig, DJ set or simply speech!

The DBR series is equipped with DSP technology, guaranteeing high-performance and reliability. The DBR series features rigging points (M8) for fixed installations and an integrated, easy to use 2 channel mixer for even more flexibility. The custom designed transducers deliver a strong performance with minimal distortion. Regardless of the powerful output level of up to 132dB and 1000W, the sound of the DBR-15 is of an exceptional quality and does not influence the performance.

Yamaha DBR15 Active Loudspeakers Features: Two-way 10” active speaker Frequency range: 50Hz - 20kHz Horizontal coverage angle: 90° Vertical coverage angle: 60° LF Driver: 15" cone, 2.5" Voice Coil, Ferrite Magnet HF Driver: 1.4" Diaphragm, 1" throat compression driver, Ferrite Magnet Output: Dynamic 1000W (LF: 800W, HF: 200W) / Constant: 465W (LF: 400W, HF: 65W) INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced) Outputs: XLR3-32 x 1 (CH1 Parallel or CH1+CH2 Mix) Processor: D-CONTOUR: FOH/MAIN, MONITOR, OFF Maximum output level (1m- on axis): 132dB SPL Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter) Colour: Black Dimensions: 455mm X 700mm X 378mm Weight: 19.3 kg
