LD-Systems ICOA 15 A BT

The LD-Systems ICOA 15 A BT is an active full-range speaker with a 15" woofer and a 1" HF driver. This speaker is a real all-rounder and offers a unique range of functions for its class. Thanks to its coaxial construction and rotatable, BEM-optimised CD horn, as well as the extensive and precisely tuned DynX DSP presets, the active 15" loudspeaker is extremely versatile, but the full-range speaker also impresses with its excellent sound in the low frequency range.

The excellent bass response of the horn-loaded woofer makes the LD ICOA 15 A BT the ideal choice for musicians, bands, entertainers and dance schools. DJs can also use it without a subwoofer. Vertically the speaker is convincing as a satellite, horizontally in flown systems or as a floor monitor. The efficient Class D power amplifier delivers 128 dB max. and 300 W RMS power.

Thanks to LD-Systems' DynX DSP technology, the speaker delivers perfect performance under all conditions with maximum clarity and assertiveness. 4 presets as well as a 3-band EQ and a delay function allow the optimal adjustment of the sound to the respective conditions. Various signal sources can be connected via the 2 line/mic input channels with individual gain controls plus mono mix output. The integrated Bluetooth function enables streaming and wireless connection of playback devices - ideal if you want to play content from a smartphone or tablet.

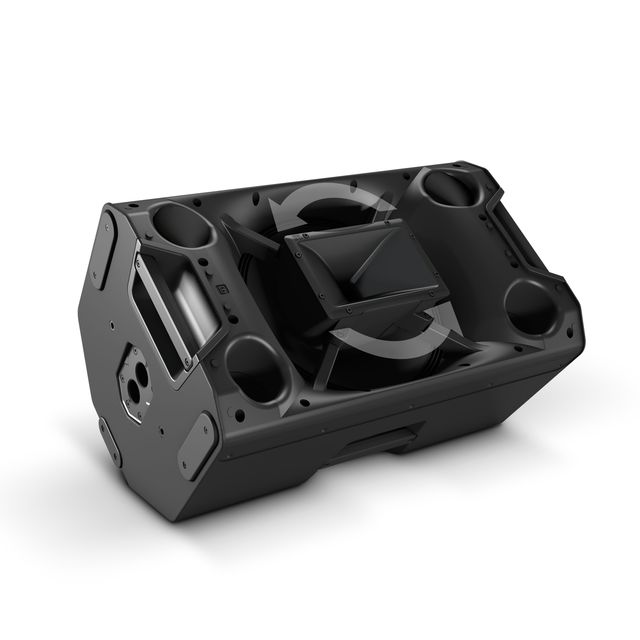

With its shock-proof front grille and ideal tilt angle of 55°, the LD-Systems ICOA 15 A BT also cuts an excellent figure as a floor monitor. In vertical use, a tilt angle of 0° or 5° can be selected with the 36 mm dual-tilt stand mount and the system can be optimally adapted to the respective sound reinforcement situation.

4 aluminum handles with ergonomic, rubberised surface provide optimum grip when carrying the box.

• True all-rounder for full-range, satellite and monitor applications
• 128 dB max. SPL and 1200 W PEAK output power

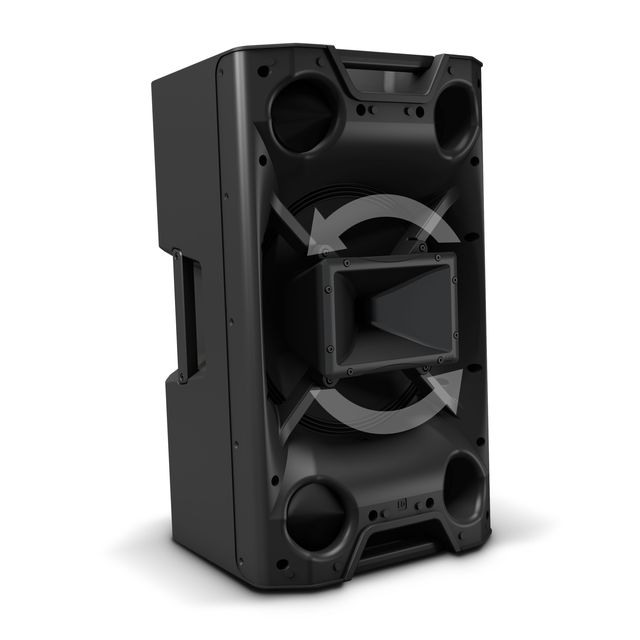

• Vertical and horizontal application due to coaxial design with rotatable, BEM-optimized CD horn (patent pending)
• Horn-loaded woofer
• DynX DSP with 4 Presets, 3-Band EQ and Delay Function
• 2 Line/Mic Input Channels with Individual Gain Controls plus Mono Mix Output
• Bluetooth streaming

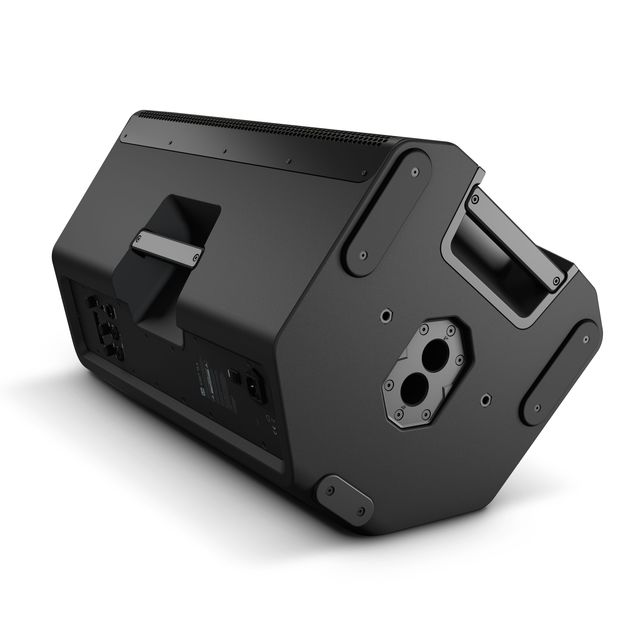

• 36 mm dual-tilt stand mount with 0° and 5° tilt angles, 55° monitor angle with stable stand

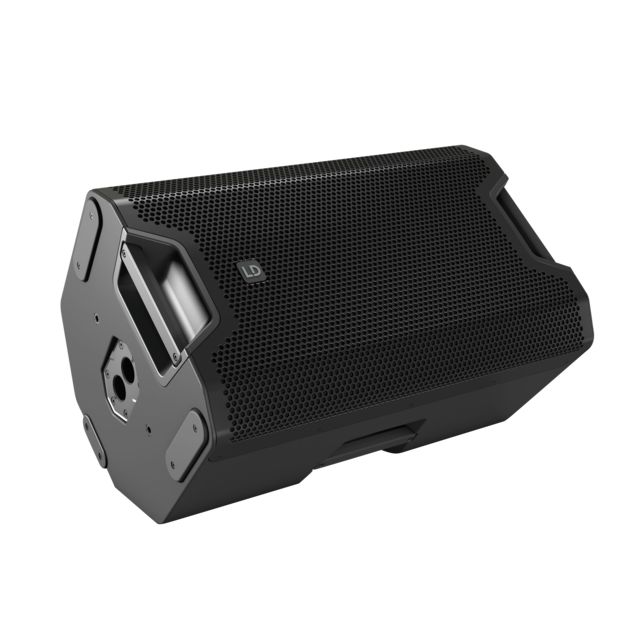

• Shockproof front grille for optimal speaker protection
• 4 aluminum handles with ergonomic rubberised surface

• Extensive, optionally available accessories for installation and transport

• Bluetooth audio decoder: Bluetooth 4.0
• Size woofer: 15"

• Woofer size: 381 mm
• Magnet woofer: Ferrite
• Woofer brand: Custom Made
• Horn: BEM optimized CD Horn
• HF driver size: 1"

• HF driver size: 25.4 mm
• HF driver magnet: ferrite
• HF driver brand: Custom Made
• Voice coil HF driver: 1"

• Voice coil HF driver: 25.4 mm
• Amplifier: Class D
• Beam angle (H x V): 90° x 50°

• Power (RMS): 300 W
• Power (Peak): 1200 W
• Frequency response: 48 - 20000 Hz
• Crossover frequency kHz: 2 kHz
• Max. SPL (peak): 128 dB
• Protection circuits: Multiband Limiter, Overheat, Overvoltage, Overcurrent

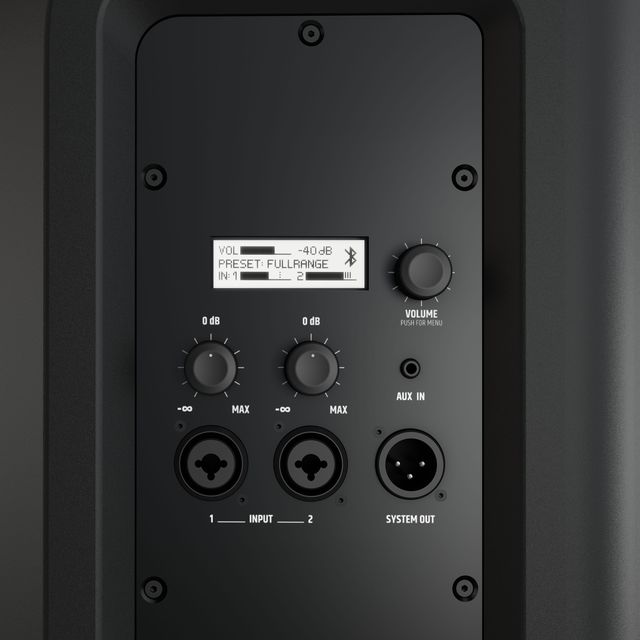

• Controls: 2 x gain, rotary-push encoder, on / off switch
• Display elements: LC-Display
• Mic/ Line inputs: 2
• Mic/line input connectors: 6.3 mm jack combo jacks (balanced), XLR
• Line inputs: 1
• Line input connectors: 3.5 mm stereo jack
• Line output connectors: 1
• Line output connectors: XLR
• Power supply: SMPS
• Power consumption: 150 W
• Ambient temperature ( in operation ): 0 - 40°C

• Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
• Relative humidity: < 80 %, non-condensing
• Fuse: T4AL 250 V
• Enclosure material: Polypropylene
• Enclosure type: Bass reflex
• Stand flange: 0°, 36 mm flange, 5°
• Monitor angle: 55°

• Width: 416 mm
• Height: 695 mm
• Depth: 415 mm
• Weight: 24,3 kg
• Accessories (included): Power cord



• Производитель:LD-Systems
• Тип:Коаксиальный
• Обработка сигнала:Активный
• Размер динамика (в дюймах):15
• Размер драйвера ВЧ (в дюймах):1
• Output in W (RMS):300
• Peak output in W:1200
• максимальное пиковое звуковое давление (Дб):128
• Вес (кг):24,3
• Материал корпуса:Пластик
• Многофункциональный корпус:Да
• Фланец:36mm
• пригодный к полету:Да
• Частотный диапазон от (Гц):48
• Частотный диапазон до (Гц):20000
• Кроссовер:Нет
• Цифровой процессор обработки звука:Да
• Эквалайзер:Да
• Линк:Да
• Вход:Комбо розетка
• Выходной разъем:XLR
• Встроенный микрофон:Да
• Разъем для подключения микрофона:2
• беспроводная сеть WLAN:Нет
• Bluetooth:Да
• Battery operation:Нет
• Интерфэйс/протокол сети RJ45:Нет
• Колёса в комплекте:Нет
• Высота (мм):695
• Ширина (мм):416
• Глубина (мм):415
• Стойка в комплекте:Нет
• incl. Cover:Нет
