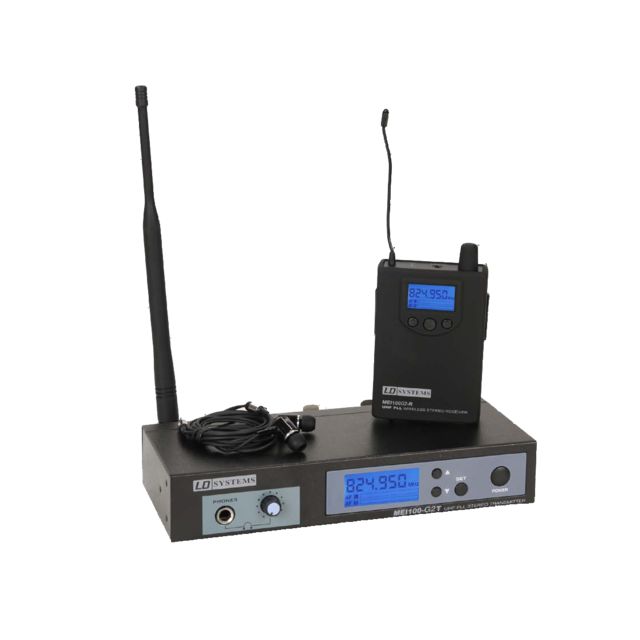

LD-Systems MEI100 G2 InEar System G2

The LD Systems MEI 100 G2 is an advanced 96 channel UHF in-ear monitoring system delivering outstanding sound with extended dynamics in both the 823 - 832 and 863 - 865 MHz bands.

Switchable mono and stereo modes select the perfect monitoring setting for live music, theatre and voice applications while an input limiter has been integrated for consistent, distortion-free sound reproduction from 80Hz - 18 kHz with a high S/N ratio and low THD.

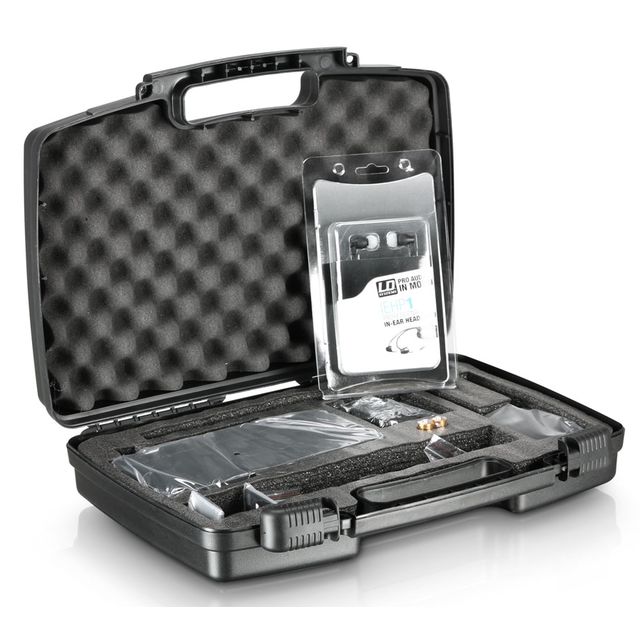

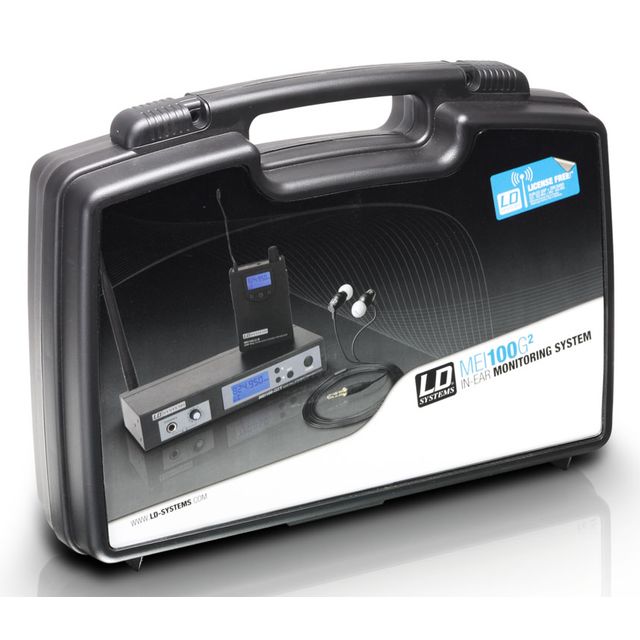

Both transmitter and receiver feature multifunction displays providing all the important system data. Operation time exceeds 8h with high quality batteries. The MEI 100 G2 package includes high quality earphones, a 19” rackmount kit and a rugged ABS plastic carrying case.

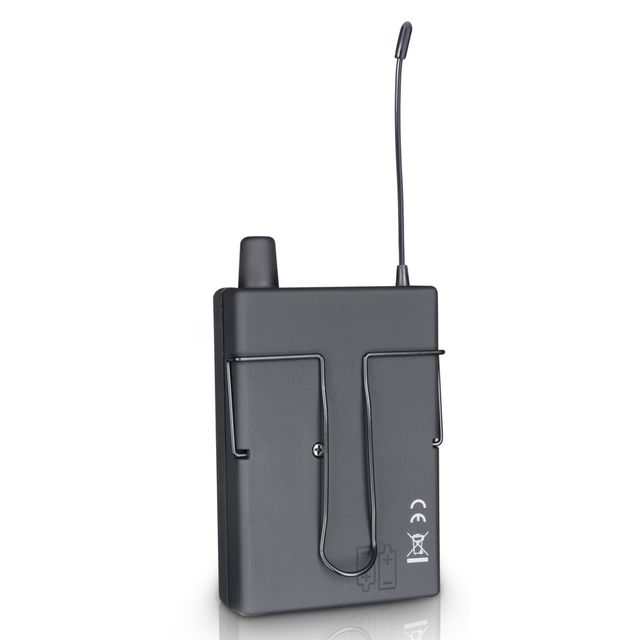

• Model name: LDMEI100G2BPR
• Product type: Belt pack receiver
• Radio frequency range: 823 - 832 and 863 - 865 MHz
• Channels: 96 (8 groups of 12 channels)
• Transmission method: FM, stereo
• Frequency response: 80 Hz - 15 kHz ± 3 dB

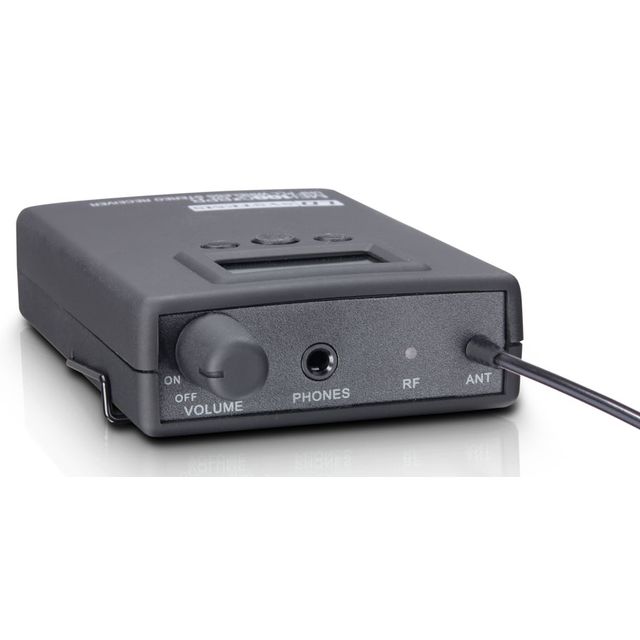

• Audio outputs: 3.5 mm jack
• Controls: Up, Down, Set, Volume
• Indicators: LC display, RF (LED)

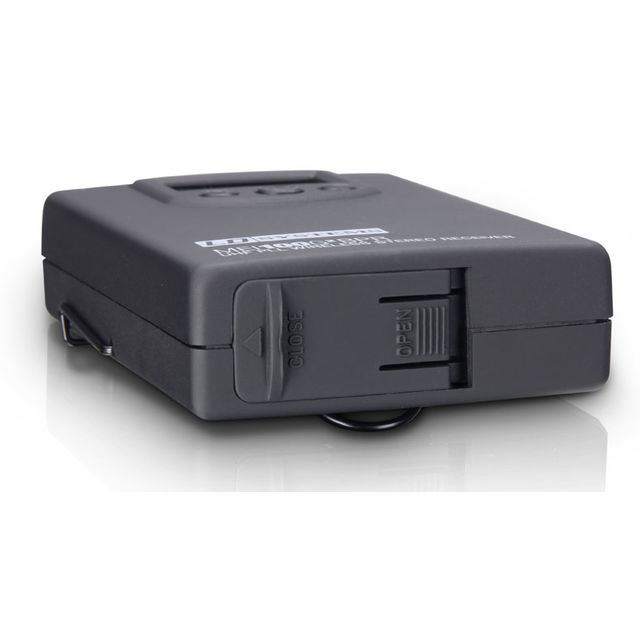

• Power supply: 2 x 1.5 V AA
• Operating time: > 10 hrs.
• Width: 65 mm Height: 95 mm Depth: 25 mm

• Model name: LDMEI100G2T
• Product type: Transmitter
• Radio frequency range: 823 - 832 and 863 - 865 MHz
• Channels: 96 (8 groups of 12 channels)
• Transmission method: FM, stereo
• RF output: 10 mW
• Frequency response: 80 Hz - 15 kHz ± 3 dB

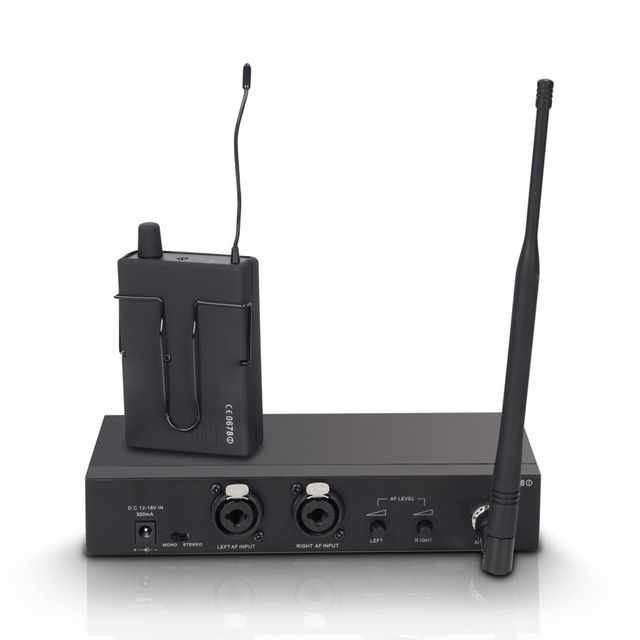

• Inputs: 2
• Input connections: XLR/ 6.3 mm jack (combo)
• Antenna connector: TNC
• Controls: up, down, set, power, volume headphone, mono/stereo, AF level (left/right)
• Indicators: LC display
• Power supply: 12 - 18 V DC
• Width: 212 mm Height: 38 mm Depth: 90 mm
• Features: Accessories (included): Antenna, power supply, headphones

• Manufacturer: LD-Systems
• Frequency Band: UHF
• Frequency Response from (Hz): 80
• Frequency Response to (Hz): 15.000
• Switchable Frequncies: Yes
• Limiter: Yes
• Mono/stereo switchable: Yes

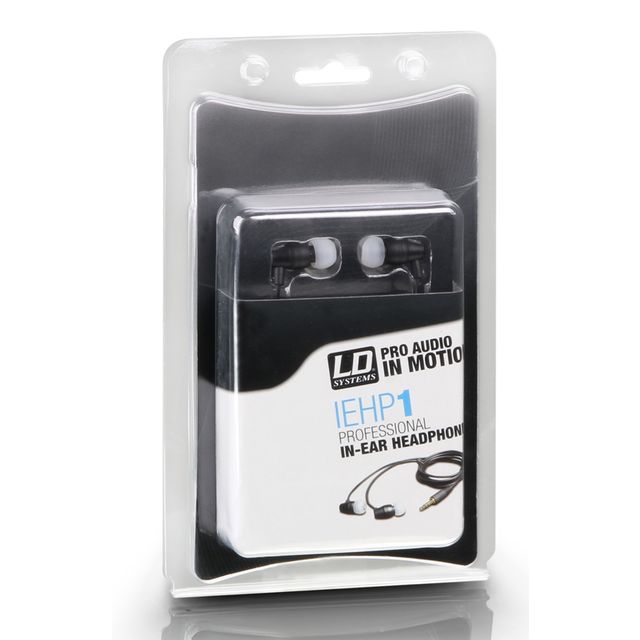

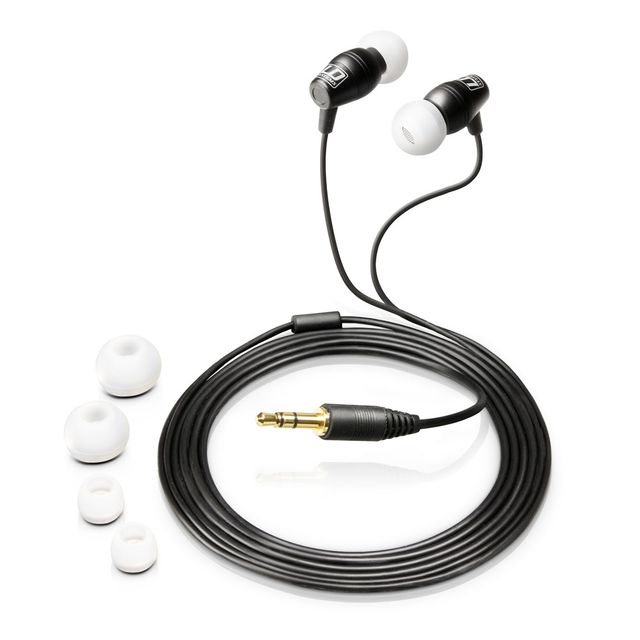

• inEar model: IEHP 1
• Color of inEar piece: Black
• Transmission frequency range to (MHz): 823
• Transmission frequency range from (MHz): 832
• Volume control: Yes
• Detachable antenna: Yes
