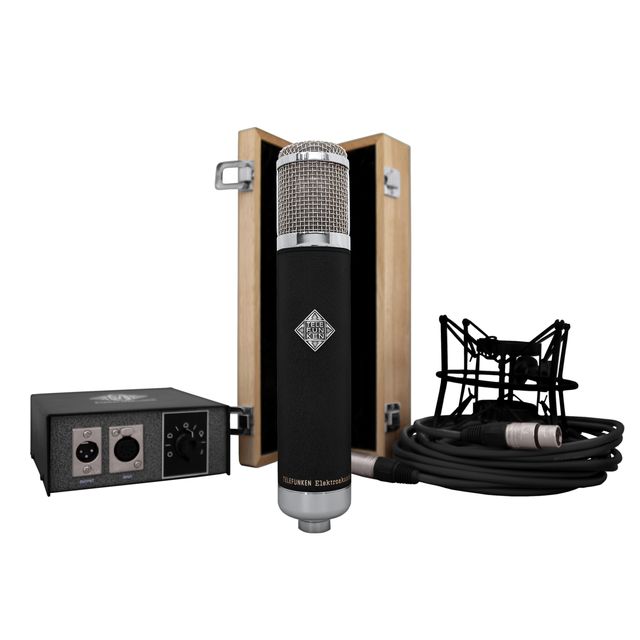

Telefunken R-F-T AK-47 MKII Condenser Microphone

The amplifier found in the R-F-T AK-47 MkII features a new proprietary circuit designed around a NOS TELEFUNKEN EF-732 tube and a custom output transformer that is for all intents and purposes an EXACT replica of the historic BV8 transformer found Telefunken's (and historic) U-47 and U-48 microphones. The dual sided large diaphragm capsule undergoes rigorous testing prior to installation in the R-F-T AK-47 MkII, and again during final testing and burn-in of the microphone.

Features: Type: Condenser Pressure Gradient Capsule: TK47 dual sided gold sputtered Frequency Range: 20Hz / 20kHz Polar Pattern: Omni, Cardioid, Figure 8 with 6 intermediate stages Sensitivity: 14MV/Pa = -37dB (0dB = 1v/Pa) -10bD Impedance: 200 ohms SPL: 125 dB Non Linear Distortion (for 1% THD @ 1KHz): 132dB Equivalent Noise: 16 dB (A-weighted) Tube Type: EF732 Telefunken NOS Power: Dedicated Power Supply Weight: 27oz (765g) Size: 9 1/2" (241mm) length x 1 3/4" (44.45mm) diameter Extras: Modern Power Supply, Shock Mount, Wooden Box

• Manufacturer: Telefunken
• Application: Studio
• Input: XLR 3 Pole
• Converter build: Condenser
• Polar Pattern: Multi-pattern
• Signal: Vocals
• Frequency Response from (Hz): 20
• Frequency Response to (Hz): 20.000
• incl. Accessories: Shock mount
